Railway infrastructure in the United States operates under severe cyclic wheel–rail contact conditions that promote subsurface crack initiation and propagation within railhead steel. While traditional fatigue life assessments rely on macroscale fracture mechanics, the influence of microstructural features—such as grain size, morphology, and anisotropy—remains insufficiently quantified. This project integrates microstructural characterization and computational fracture modeling to establish a physics-based understanding of how grain structure governs fatigue crack growth in rail steel.

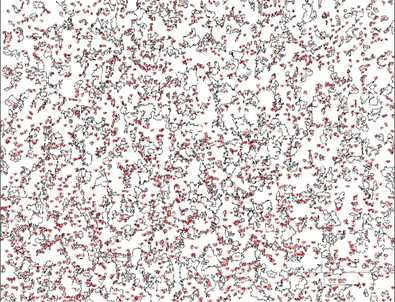

Conducted at Texas A&M University, this research employs a nonlinear viscoelastic cohesive zone model (CZM) embedded within a finite element framework to simulate crack propagation through a physically representative polycrystalline microstructure. Grain geometry was derived directly from scanning electron microscopy (SEM) images of a railhead specimen. Image processing and automated grain detection determined an average grain size of approximately 40 µm, which served as the baseline input for mesh generation.
A hexagonal finite element mesh was adopted to realistically represent grain morphology and orientation effects. Cohesive interface elements were inserted along all grain boundaries, allowing cracks to initiate and propagate along physically meaningful paths. The model was solved under quasi-static cyclic tensile loading conditions representative of service-induced stress states.
Key Findings
1. Effect of Grain Size
Parametric simulations were conducted for average grain sizes of 40, 60, 75, and 100 µm. Results demonstrated a clear inverse relationship between grain size and fatigue resistance:
- Fine-grained microstructures significantly slowed crack growth.
- Coarse-grained structures allowed faster, more direct crack propagation.
- Increased boundary density in fine-grained materials forced crack deflection and increased energy dissipation.
These results quantitatively confirm that grain refinement enhances fatigue life by increasing crack-path tortuosity.
2. Effect of Grain Elongation (Microstructural Anisotropy)
To simulate service-induced grain elongation, aspect ratios ranging from 0.7 (horizontally elongated) to 1.3 (vertically elongated) were analyzed.
- Grains elongated perpendicular to the crack path significantly slowed crack growth due to deflection and branching.
- Grains elongated parallel to the crack path created low-resistance propagation pathways.
- Microstructural anisotropy strongly influenced fatigue life depending on crack orientation relative to grain morphology.
This directional dependency highlights the critical role of service-induced grain elongation in rail fracture behavior.
Modeling Framework
The study formulates a nonlinear initial boundary value problem (IBVP) within continuum mechanics, incorporating:
- Linear elastic bulk behavior (Hooke’s law)
- Nonlinear viscoelastic cohesive zone modeling
- Damage evolution laws governing traction–separation behavior
- Time-incremental finite element implementation
Model verification was performed against an analytical traction–separation solution to ensure numerical accuracy. The cohesive formulation enables realistic simulation of crack initiation, stable propagation, softening, and final decohesion without stress singularities typical of classical LEFM approaches.
Impact and Relevance to CRR
This research provides a quantitative link between rail microstructure and fatigue performance, enabling:
- Improved predictive life models incorporating microstructural parameters
- Better understanding of crack branching and deflection mechanisms
- Guidance for rail manufacturing processes aimed at optimizing grain refinement
- Enhanced fracture-property calibration for multiscale computational rail models
By combining experimental microstructure characterization with advanced cohesive zone modeling, this work advances CRR’s mission of developing physics-based, experimentally grounded predictive tools for rail integrity assessment.
